RGB RF Controller 3x6A 12/24V | | E-pood |
EFFEX AS
E-pood »  »

RGB RF Controller 3x6A 12/24V

 Küsi toote kohta... Saada sõbrale Share on Facebook

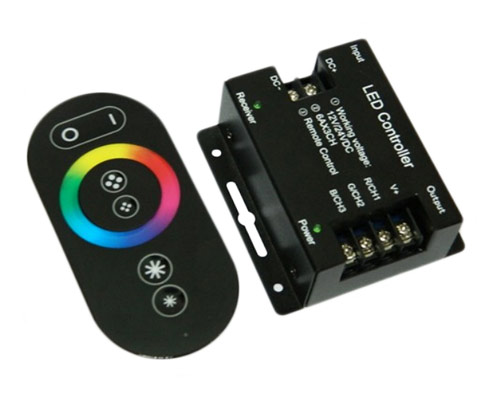

RGB RF Controller 3x6A 12/24V
MODEL MW-CTR-RGB-6A

POWER SUPPLY
Rated voltage: 12Vdc +/- 5% or 24Vdc +/- 5%
Static power consumption: 1W
Power supply connection:  Socket 2.1×5.5mm or screw connector
Output voltage type: PWM
Output voltage: 0-12V or 0-24V

Number of channels: 3(R,G,B)
Output capacity of the channel: 6A
Collective output load capacity: 18A
Output power of the channel max. 72W (for 12Vdc) 144W (for 24Vdc)
Collective output power max. 216W (for 12Vdc operation) 432W (for 24Vdc operation)

CONTROL
Transmission type: Radio waves (RF)
Transmitter: Remote control with 6 buttons and colour palette
Range: 30m in an open space of 15m in an enclosed space
Encryption key. Yes
Static programs Yes
Dynamic programmes Yes
OTHER
Operating temperature: -20oC ÷ 40oC
koodkirjeldus  ühikkm-takm-ga
MW-CTR-RGB-6A-01RGB kontroller 12V/24V 6A kanal (216W/432W) + pult valge MW Lightingtk21.00 25.20
MW-CTR-RGB-6A-02RGB kontroller 12V/24V 6A kanal (216W/432W) + pult must MW Lightingtk23.00 27.60
