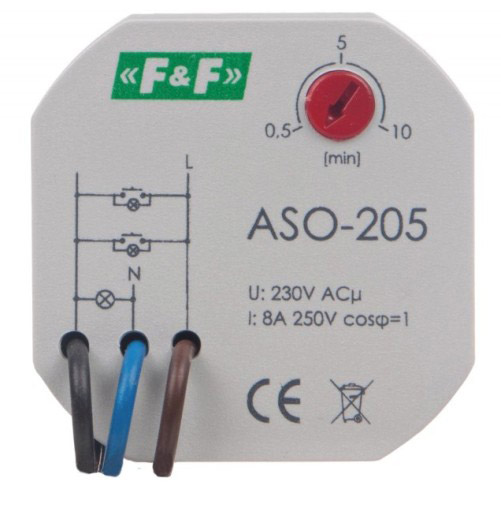

ASO-205 staircase timer

Purpose - Staircase timer serves to keep switched-ON lighting of staircase, corridor, or any other object for the set time and to switch-OFF this lighting automatically, upon elapse of this set time.
Functioning - Turned ON staircase timer supports the lighting during set time by potentiometer (from 0,5min. to 10min.). After passage of set time timer will switch OFF the lighting automatically. After switching OFF the lighting there is possibility to switch it ON again.
Attention! ASO-205 is adapted to co-operate with pushbuttons equipped with neon lamp.

Technical data
supply 230V AC current
load <10A
switching OFF delay - adjustable 0,5÷10min
switching ON delay <1sec
connection 3×DY 1,0mm²; l=10cm
power consuption 0,4W
working temperature -25÷50°C
dimensions Ų=55; h=13mm
fixing to under plaster box Ų60
